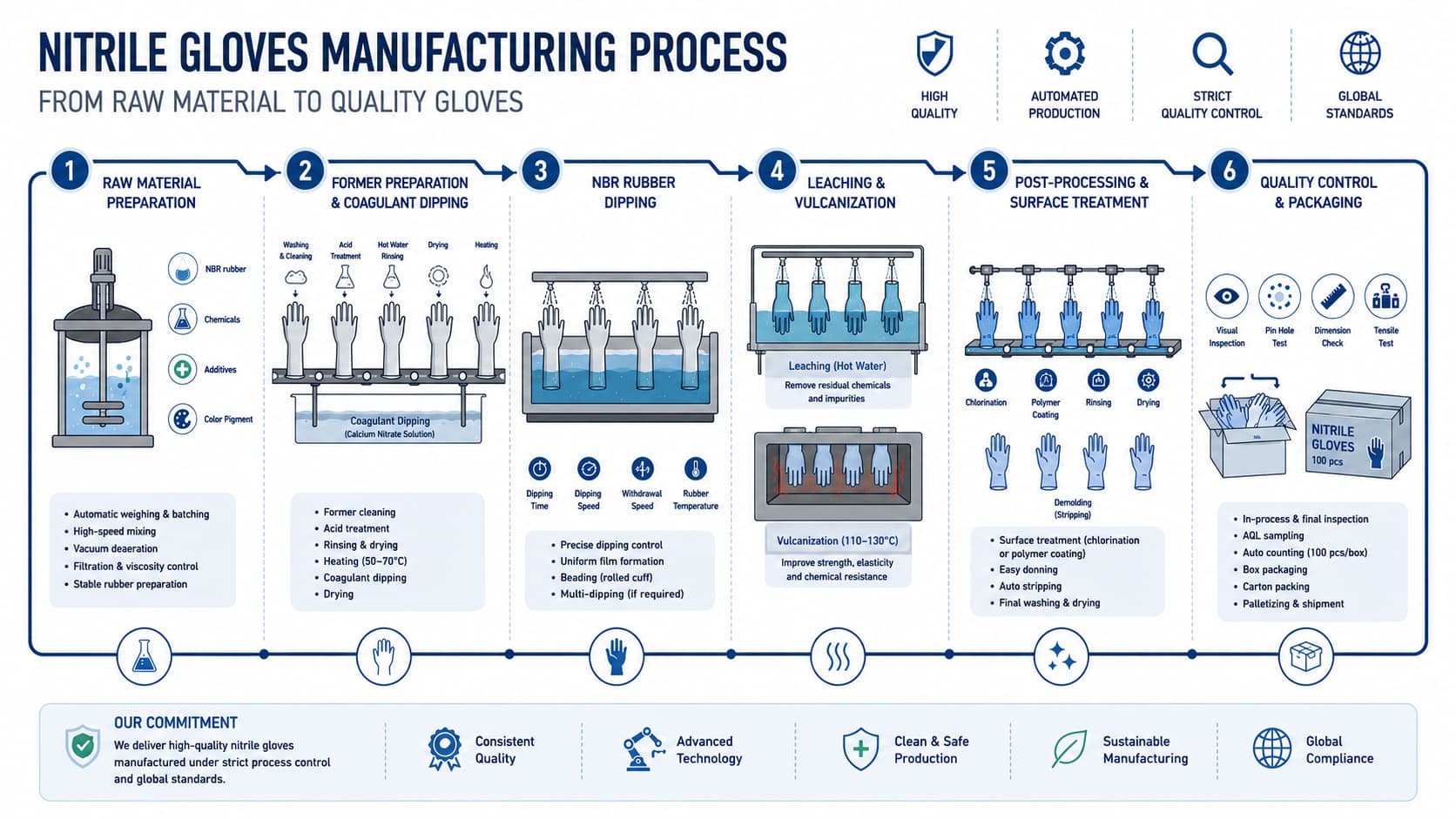

Every nitrile glove that reaches a healthcare worker has traveled through a sophisticated manufacturing pipeline. Understanding this process empowers buyers to evaluate supplier capability, trace quality failures, and make informed sourcing decisions.

Step 1 — Raw Material Preparation

The foundation of every nitrile glove is NBR synthetic latex — a colloidal dispersion of nitrile-butadiene rubber particles in water. NBR is produced by emulsion polymerization of acrylonitrile (chemical resistance) and butadiene (elasticity). The acrylonitrile content typically ranges from 28-35% by weight.

Before dipping, the NBR synthetic latex undergoes compounding: sulfur vulcanizing agents, zinc oxide activators, accelerators (or alternative cross-linkers in accelerator-free formulations), antioxidants, and pigments are added. The compound must age 24-48 hours to stabilize viscosity.

Step 2 — Former Preparation and Coagulant Dipping

Ceramic or aluminum hand-shaped formers are cleaned, heated to 50-70C, and dipped into a coagulant bath containing calcium nitrate and calcium carbonate. The coagulant creates a thin chemical film that causes NBR rubber particles to deposit and coagulate instantly upon contact.

Step 3 — NBR rubber Dipping

The coagulant-coated formers enter the NBR rubber dip tank at controlled speed and dwell time (8-15 seconds). The coagulant film triggers immediate particle deposition, forming a wet gel layer of 0.08-0.20mm thickness. The formers rotate to ensure even coating on fingertips and cuffs.

Step 4 — Leaching and Vulcanization

After dipping, the wet gel gloves undergo water leaching — a warm-water rinse lasting 10-30 minutes that removes residual coagulant salts, soluble proteins, and excess accelerators. Leaching is critical for biocompatibility and allergy reduction.

The formers then pass through a multi-zone curing oven at 100-130C for 20-40 minutes. Vulcanization cross-links the acrylonitrile-butadiene polymer chains, converting the wet gel into a stable, elastic rubber film.

Step 5 — Post-Processing and Surface Treatment

After curing, gloves undergo chlorination or polymer coating to create a smooth, non-sticking inner surface for easy donning. Polymer coating (typically polyurethane or acrylic) is preferred for accelerator-free formulations to avoid additional chemical residues.

Step 6 — Quality Control and AQL Testing

Q: NBR synthetic latex vs natural rubber latex?

A: NBR synthetic latex is from acrylonitrile and butadiene polymerization; contains no natural proteins, eliminating Type I latex allergy risk entirely.

Q: Why is leaching important?

A: Leaching removes residual coagulant salts, proteins, and accelerator traces from the surface. Without it, these residues cause skin irritation.

Q: How does acrylonitrile content affect performance?

A: Higher content (30-35%) increases oil/solvent resistance but reduces flexibility. JIXIANG balances both properties.

Q: What does AQL 1.5 mean practically?

A: No more than 1.5% of sampled gloves may have pinholes. For 35,000 gloves, 200 tested; <=7 defects accepted.

Q: Can nitrile gloves be sterilized for surgical use?

A: Standard exam gloves cannot. Surgical-grade requires EN 455-4 sterile validation and gamma irradiation. JIXIANG offers both exam and surgical ranges.
